| Place of Origin: | CHINA |
|---|---|
| Brand Name: | GENERALINK |
| Certification: | CE, ROHS |
| Model Number: | GL-CSJ100WS |
| Delivery Time: | 3-8 working days |
| Payment Terms: | L/C, T/T |
| Weight: | 8.5 Kg | Mounting: | 5/8” Baby Pin Aluminum Mounting Yoke |
|---|---|---|---|
| Tilt Angle: | 90° | Voltage Input: | 36 V DC |
| Power Connection: | 110 - 240 VAC, 50 - 60 Hz, 2.0 A | Power Consumption: | 100 W（100W Tungsten 100W Daylight） |
| Heat Management: | Passive Heat Sink Cooling System | CCT: | 3200K - 5600K |
| Dimming: | 0 - 100% Continuous | Controls: | On-Board Manual Controls / 512 DMX |

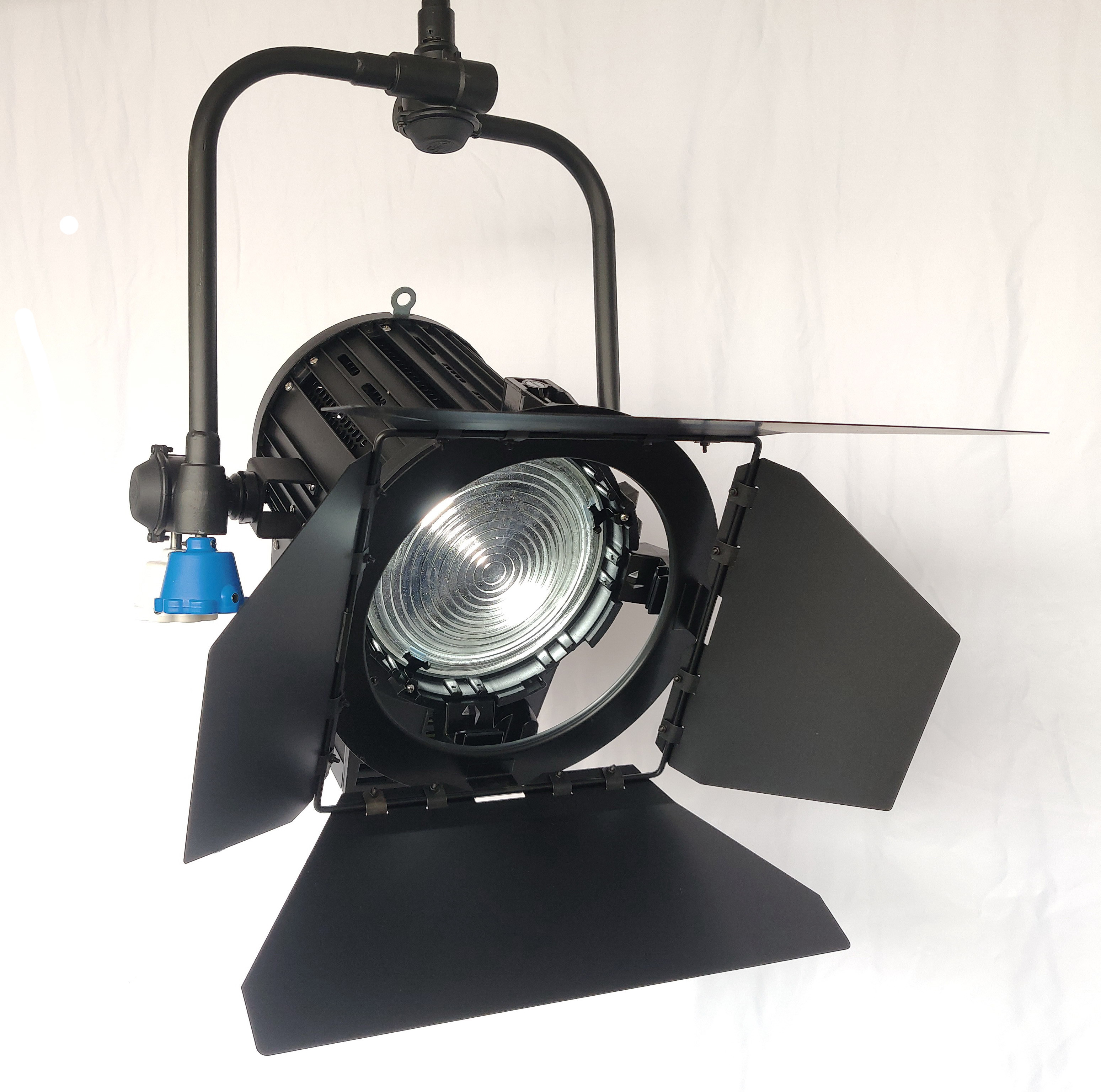

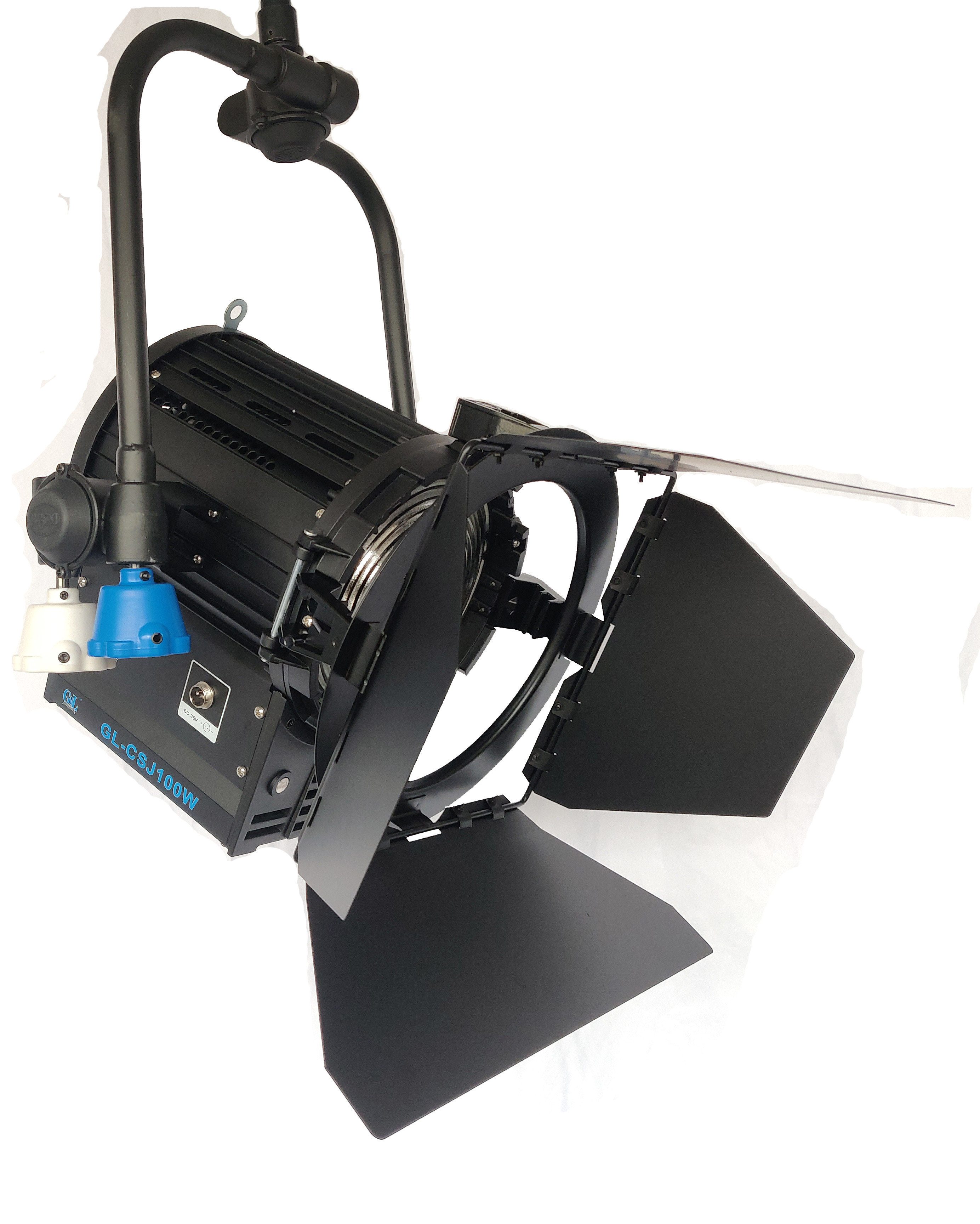

Broadcast Lighting 100W Led Fresnel Light Tunstan High CRI Tungsten replacement 3200K
1. OVERVIEW:
GL-CSJ100WT LED Fresnel is designed for professional filming and broadcasting, built with aluminum, classical and compact design, ensuring maximum light output and lightweight. Tungsten of CCT 3200K, offering high colour rendering (CRI average >97) and TLCI 97, be controlled via DMX or manual control on light. high power light output and self-cooling without fan and noise. It is absolutely Studio friendly.
2. FEATURES:
- Higher CRI > 97 and TLCI > 97 are indicators of accuracy in color display for professional filming and broadcasting.
- The Bi-Color will give you less light than all Daylight or Tungsten, this dedicated Tungsten of CCT 3200K is for maximum output.
- Variable Spot to Flood
- Self-cooling without Fan, no noise
- Fully Dimmable 0-100%
- DMX or Pole Operation or On-Board Manual Controls
- 24V Battery or Worldwide AC Power
- Yoke Mount for Pan & Tilt
- Sturdy, Durable Construction
3. PHOTOMATRIC:
|
6.0’/1.8m (Tungsten) |
12’/3.7m (Tungsten) |
|
| Spot:15° | 3230 lux/300 fc | 720 lux/67 fc |
| Flood:60° | 1250 lux/116 fc | 310 lux/29 fc |
4.HISTOGRAM
Tungsten
5. SPECTRUM
Tungsten
6. SUPPLIED WITH:
- Led Fresnel light 100W Tungsten 3200K
- 4-leaf Rotatable Barndoor
- Filter frame.
- Powercon Type Power Cable
- Tilt Lock and Yoke
- DMX Cable
