| Place of Origin: | CHINA |
|---|---|
| Brand Name: | GENERALINK |
| Certification: | CE, ROHS |
| Model Number: | GL-HMI 4000 |
| Delivery Time: | 3-8 working days |
| Item Type: | Film Lighting | Lamp Power: | 2500W/4000W 230V |
|---|---|---|---|
| Light Head Type: | HMI Fresnel | Beam Angle: | 20-60 ° |
| Dimming: | 50-100% | Bulb Socket / Lamp Base:: | G38 |
| Color Temeperature: | 6000K | Lamp Body Material: | Aluminium Alloy |
| Weight: | 23.5 KG | Measurement: | 460 * 550 * 940mm |
| Warranty: | 1 Year | ||
| Highlight: | hmi film light,hmi video lights |
||
Professional Movie Lighting HMI Light 4000W with Univeral Ballast
1. OVERVIEW:
Our HMI 4000 Fresnel light is a daylight spotlight with compact and durable structure. It provides stable output and color temperature. There is focus knob on the light and beam angle is adjustable from 20°-60°. The optical lens is made of 300mm diameter short focal length threaded lens, which is a low expansion coefficient, high borosilicate glass Fresnel lens and provides ultra-smooth operation with a wide beam angle range.
The shape of light is made of thermoplastic lightweight shell and rust-proof, corrosion-resistant aluminum inner shell. Greatly improve the mechanical strength and corrosion resistance of the light, and ensure good heat dissipation performance of the lamp during working normally.
Electronic ballast features: temperature control, fan cooling, no flicker.
Our HMI Fresnel Series Light is available in several sizes: GL-HMI 575, GL-HMI 1200, GL-HMI2500, GL-HMI 4000.
100% compatible and universal.
2. FEATURES:
- Classic and durable design.
- Fully Aluminum light house.
- 300mm diameter short focal length threaded len.
- Standby hot start, universal ballast for 2500/4000/M40.
- flicker-free High Speed Electronic Ballasts.
3. Electronic Ballast Features:
- Universal Ballast for 2500W/4000W/M40.
- High-speed shooting without flick, frequency is 60hz, 75hz, 300hz.
- Stable power output.
- The output light fluctuation is no more than 3%.
- Dimming range 50%-100%, stepless dimming.
- The intensity of light increases by at least %5 compared to inductive ballasts.
- Lamp life is extended by at least 20%.
- Compared with inductive ballasts, it has a smaller volume and weight.
4. Univeral Ballast Specification:
| Ballast Type: | Electronic ballast (NO DMX ) |
| Ballast power: | 2500/4000 Watts |
| Supply Voltage: | 220-250V /AC 50/60Hz L,N,PE |
| frequency mode: | optional 50Hz/ 60Hz/ flicker-free |
| Lamp Power: | 2500W-4000W (constant control) |
| Current Characteristic: | square wave,75Hz |
| Dimming Range: | 100% - 50% |
| Nominal Lamp Power Starting | Cold Start and Hot Re-strike |
| Typical Light Ripple: | Typ. <3% |
| Power Cable: | 1.5m |
| Protection Class: | IP32 |
| Material: | Metal Housing |
| Weight: | 20 kg |
| Dimensions (H x W x L): | 243x370x450 mm |

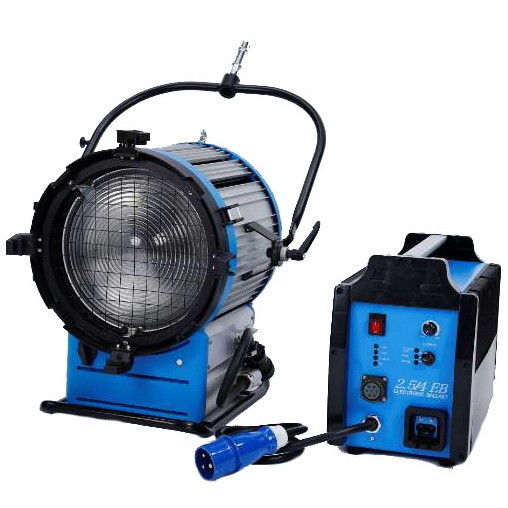

- HMI 4000 Fresnel Light ( OSRAM bulb does not included and local purchasing suggested)

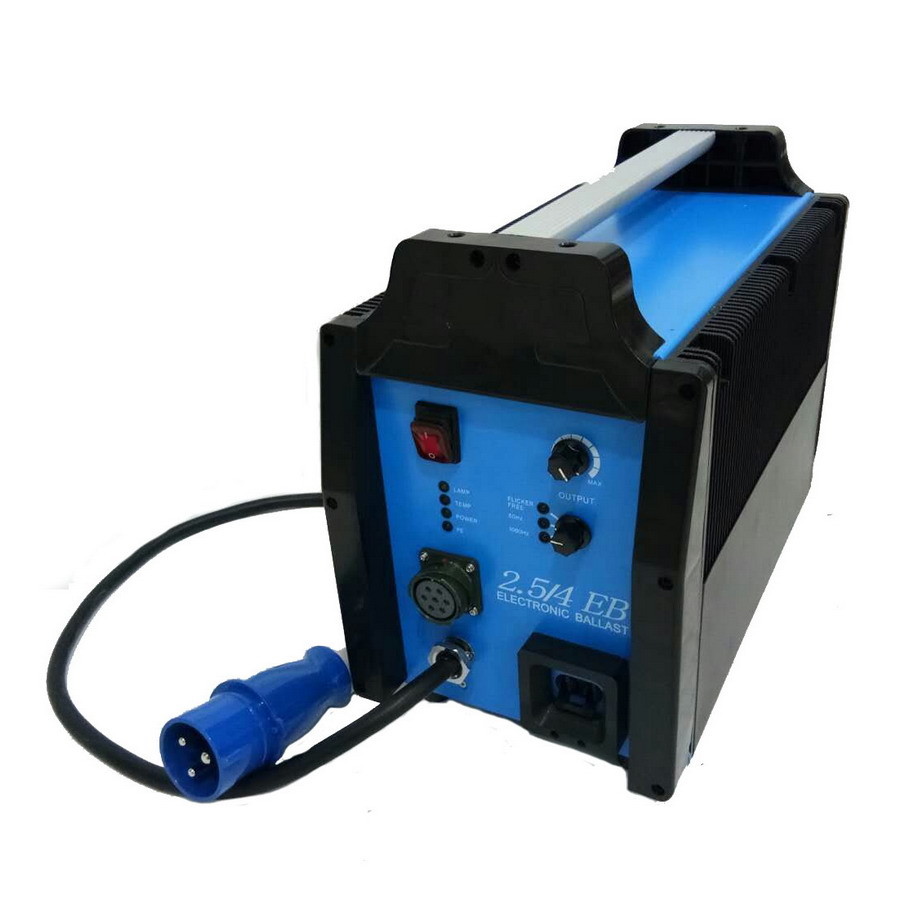

- 2.5/4.0/M40 High Speed Electronic Ballast Ballast
- 6M HEAD-TO-BALLAST CABLES
- 4-leaf Barndoor
- Slim Yoke with tilt lock
