| Place of Origin: | CHINA |
|---|---|
| Brand Name: | GENERALINK |
| Certification: | CE, ROHS |
| Model Number: | GL-PAR M40 |
| Delivery Time: | 3-8 working days |
| Item Type: | Film Lighting | Lamp Power: | 2500W/4000W 230V |
|---|---|---|---|
| Light Head Type: | Open Face With Reflector | Beam Angle: | 20-60 ° |
| Dimming: | 50-100% | Bulb Socket / Lamp Base:: | G38 |
| Color Temeperature: | 6000K | Lamp Body Material: | Aluminium Alloy |
| Weight: | 19 KG | Measurement: | 670 * 402 * 511mm |
| Warranty: | 1 Year | ||
| Highlight: | led studio lights,professional film lighting |
||
Professional Film Lighting HMI Par Light M40 with Univeral Ballast
1. OVERVIEW:
Together with our flicker-free Electronic Ballasts, our HMI Fresnel Lights and HMI Par Lights are ideal for all types of location lighting.
HMI Par Series Light is available in two sizes of GL-PAR M18 and GL-PAR M40. The M18 is an 1,800W open face lamphead and is adjustable from 20° to 60° without requiring spreader lenses.
2. FEATURES:
- Classic and durable design.
- Fully Aluminum light house.
- Polyhedral Improved reflector, Converging more light.
- Standby hot start, universal ballast for 2500/4000/M40.
- flicker-free High Speed Electronic Ballasts.
3. DETAIL OF PRODUCTS:
- Lens snap, easy to open and install light bulb.
- Barndoor snap, easy to install
- Sliding Stirrup.
- Safe bulb lock
4. Electronic Ballast Features:
- Universal Ballast for 2500W/4000W/M40.
- High-speed shooting without flick, frequency is 60hz, 75hz, 300hz.
- Stable power output.
- The output light fluctuation is no more than 3%.
- Dimming range 50%-100%, stepless dimming.
- The intensity of light increases by at least %5 compared to inductive ballasts.
- Lamp life is extended by at least 20%.
- Compared with inductive ballasts, it has a smaller volume and weight.

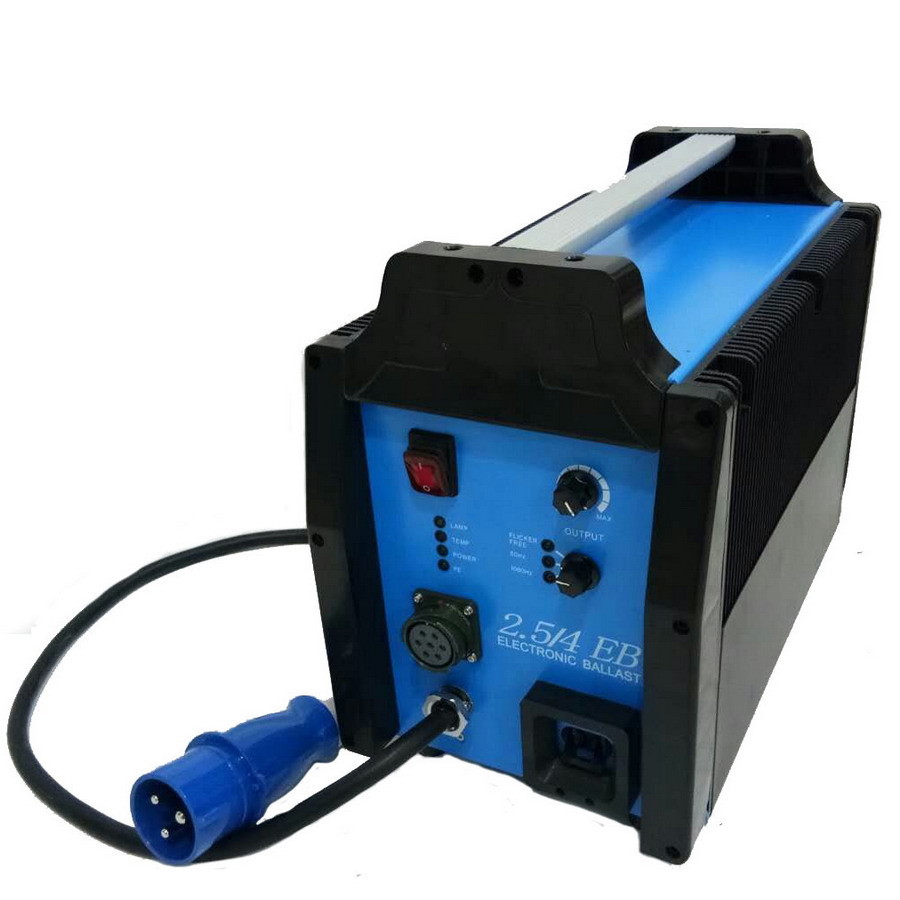

5. Univeral Ballast Specification:
| Ballast Type: | Electronic ballast (NO DMX ) |
| Ballast power: | 2500/4000 Watts |
| Supply Voltage: | 220-250V /AC 50/60Hz L,N,PE |
| frequency mode: | optional 50Hz/ 60Hz/ flicker-free |
| Lamp Power: | 2500W-4000W (constant control) |
| Current Characteristic: | square wave,75Hz |
| Dimming Range: | 100% - 50% |
| Nominal Lamp Power Starting | Cold Start and Hot Re-strike |
| Typical Light Ripple: | Typ. <3% |
| Power Cable: | 1.5m |
| Protection Class: | IP32 |
| Material: | Metal Housing |
| Weight: | 20 kg |
| Dimensions (H x W x L): | 243x370x450 mm |
- M40 HMI Lamphead ( OSRAM bulb does not included and local purchasing suggested)
- 2.5/4.0/M40 High Speed Electronic Ballast Ballast
- 6M HEAD-TO-BALLAST CABLES
- 4-leaf Barndoor
- Slim Yoke with tilt lock
