| Place of Origin: | CHINA |
|---|---|
| Brand Name: | GENERALINK |
| Certification: | CE, ROHS |
| Model Number: | GL-CSJ200WD |
| Delivery Time: | 2-5 working days |
| Item Type: | LED TV Studio Lights | Lamp Power: | 200W |
|---|---|---|---|
| Input Voltage: | AC100-240V, 50-60HZ, DC 7.2V | Battery Plate: | None |
| Beam Angle: | 15-60 ° | Dimming: | 0-100% |
| Expected Lamp Life: | 50,000 Hours | Illuminance: | 7500 Lux @ 6.0’@ Spot |
| Control: | DMX Or Pole Operation Or On-Board Manual Control | Color Temeperature: | 5600K |
| CRI: | >92 | TLCI: | >94 |
| Lamp Body Material: | Aluminium Alloy | Weight: | 9.5 KG |
| Measurement: | 330mm*480mm*518mm | Warranty: | 1 Year |
| High Light: | led fresnel spotlight,led fresnel stage lighting |
||

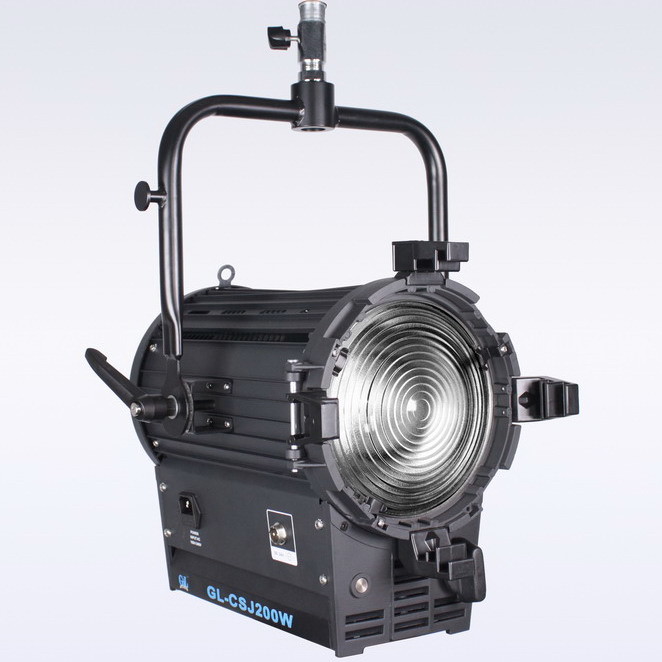

High Light Output 200w Led Fresnel Light Daylight Battery Powered for Film and Studio Lighting
1. OVERVIEW:
GL-CSJ200WD LED Fresnel is designed for professional filming and broadcasting,as well as projects and documentaries Creating. Built with aluminum, classical and compact design, ensuring maximum light output and lightweight. Daylight of CCT 5600K, offering high colour rendering (CRI average >92) and TLCI 93, be controlled via DMX or manual control on light. It is absolutely Studio friendly for high power light output and self-cooling without fan and noise. It is one of the largest light output of LED Fresnel lights on the market.
2. FEATURES:
- Higher CRI > 92 and TLCI > 93 are indicators of accuracy in color display for Studio or Film.
- For maximum output, Daylight of CCT 5600K is the dedicated ones. The Bi-Color will give you less light than the dedicated all Daylight unit or the all Tungsten unit.
- DMX or Pole Operation or On-Board Manual Controls
- Variable Spot to Flood from 15º to 60º degree range of beam adjustment

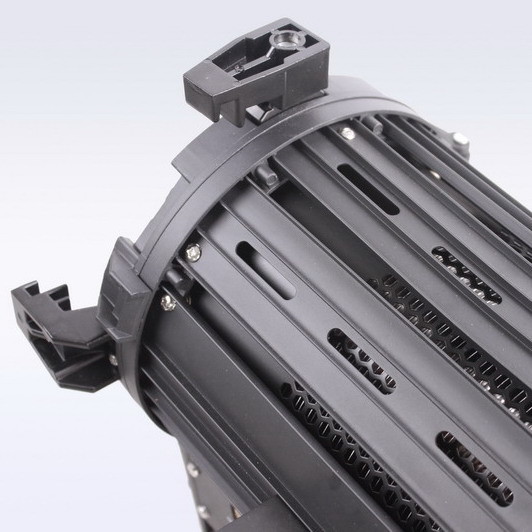

- Self-cooling without Fan, no noise, absolutely Studio friendly
- Fully Dimmable 0-100%
- 24V Battery or Worldwide AC Power
- Yoke Mount for Pan & Tilt
- Sturdy, Durable Construction
- One of the brightest LED Fresnel on the market
3. PHOTOMATRIC:
|
6.0’/1.8m (Daylight) |
12’/3.6m (Daylight) |
18’/5.5m (Daylight) |
|
| Spot:15° | 7500 lux | 1800 lux | 790 lux |
| Flood:60° | 2900 lux | 760 lux | 360 lux |
4.HISTOGRAM
Daylight
5. SPECTRUM
Daylight
6. SUPPLIED WITH:
- Led Fresnel light 200W Daylight color

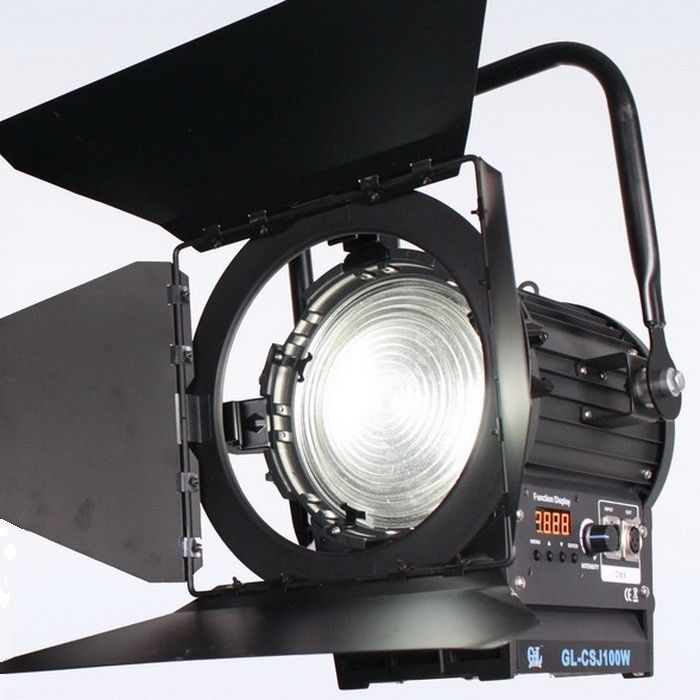

- 4-leaf Rotatable Barndoor
- Filter frame.
- Powercon Type Power Cable
- Tilt Lock and Yoke
- DMX Cable
