TV Studio HMI Lights 1200W With Universal Ballast , Studio Lights For Video

Basic Information
Place of Origin: CHINA
Brand Name: GENERALINK
Certification: CE, ROHS
Model Number: GL-HMI 1200
Delivery Time: 3-8 working days
Contact Now
Detail Information
Item Type: Film Lighting Lamp Power: 575W 230V
Light Head Type: HMI Fresnel Beam Angle: 20-60 °
Dimming: 50-100% Bulb Socket / Lamp Base:: G38
Color Temeperature: 6000K Lamp Body Material: Aluminium Alloy
Weight: 18 KG Measurement: 290mm*360mm*700mm
Warranty: 1 Year
High Light:

hmi film light

,

studio lighting equipment


Product Description

Professional TV Studio Lighting HMI Light 1200W with Univeral Ballast



1. OVERVIEW:

Our HMI series Fresnel light is a daylight spotlight with compact and durable structure. It provides stable output and color temperature. There is focus knob on the light and beam angle is adjustable from 20°-60°. The optical lens is made of 175mm diameter short focal length threaded lens, which is a low expansion coefficient, high borosilicate glass Fresnel lens and provides ultra-smooth operation with a wide beam angle range.

The shape of light is made of thermoplastic lightweight shell and rust-proof, corrosion-resistant aluminum inner shell. Greatly improve the mechanical strength and corrosion resistance of the light, and ensure good heat dissipation performance of the lamp during working normally.

Electronic ballast features: temperature control, fan cooling, no flicker.

Diagnostic protection if overvoltage, undervoltage, overcurrent, ground current, short circuit, over temperature.

Our HMI Fresnel Series Light is available in several sizes: GL-HMI 575, GL-HMI 1200, GL-HMI2500, GL-HMI 4000.

100% compatible and universal.

2. FEATURES:
- Classic and durable design
- Fully Aluminum light house.
- Polyhedral Improved reflector, Converging more light
- Standby hot start, universal ballast for 575/1200/M18
- flicker-free High Speed Electronic Ballasts universal
3. DETAIL OF PRODUCTS:
- easy to open and install light bulb.
- Barndoor snap, easy to install
TV Studio HMI Lights 1200W  With Universal Ballast , Studio Lights For Video

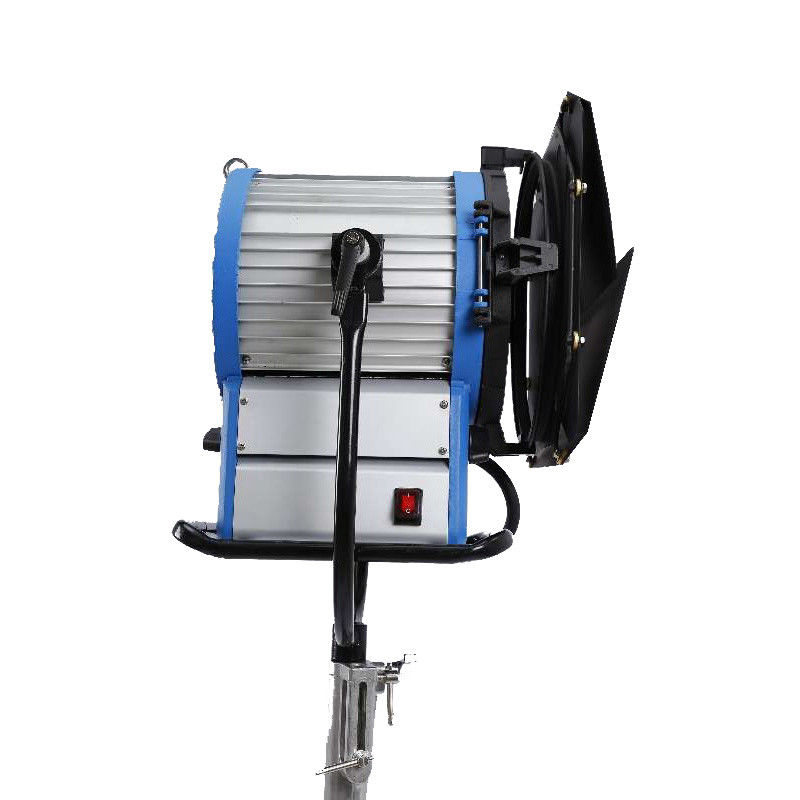

- Sliding Stirrup.
TV Studio HMI Lights 1200W  With Universal Ballast , Studio Lights For Video
4. Electronic Ballast Features:
- High-speed shooting without flick, frequency is 60hz, 75hz, 300hz.
- The power is adjustable and match the lamp of 575W/1200W/1800W automatically.
- Dimming range 50%-100%, stepless dimming.
- Temperature control: When the internal temperature of the ballast reaches a certain level, the fan automatically is triggered and performs heat dissipation.
- The intensity of the output light is increased by at least 5% compared to an inductive ballast.
- With this ballast, the lamp life is extended by at least 20% compared to inductive ballasts.
- Stable output power.
5. Univeral Ballast Specification:

Ballast Type: Electronic ballast (NO DMX )
Ballast power: 575/1200/1800 Watts
Supply Voltage: 220-250V /AC 50/60Hz
frequency mode: Optional 1000Hz/ 60Hz/ flicker-free
Lamp Power: 575/1200/1800W (constant control)
Dimming Range: 100% - 50%
Nominal Lamp Power Starting Cold Start and Hot Re-strike
Power Cable: 1.5m
Protection Class: IP32
Material: Metal Housing
Weight: 6.5 kg
Dimensions (H x W x L): 200x300x162 mm


6.SUPPLIED WITH:
- HMI 1200 Lamphead ( OSRAM bulb does not included and local purchasing suggested)
- 575/1200/M18 High Speed Electronic Ballast
- 6M HEAD-TO-BALLAST CABLES
- 4-leaf Barndoor
- Slim Yoke with tilt lock
